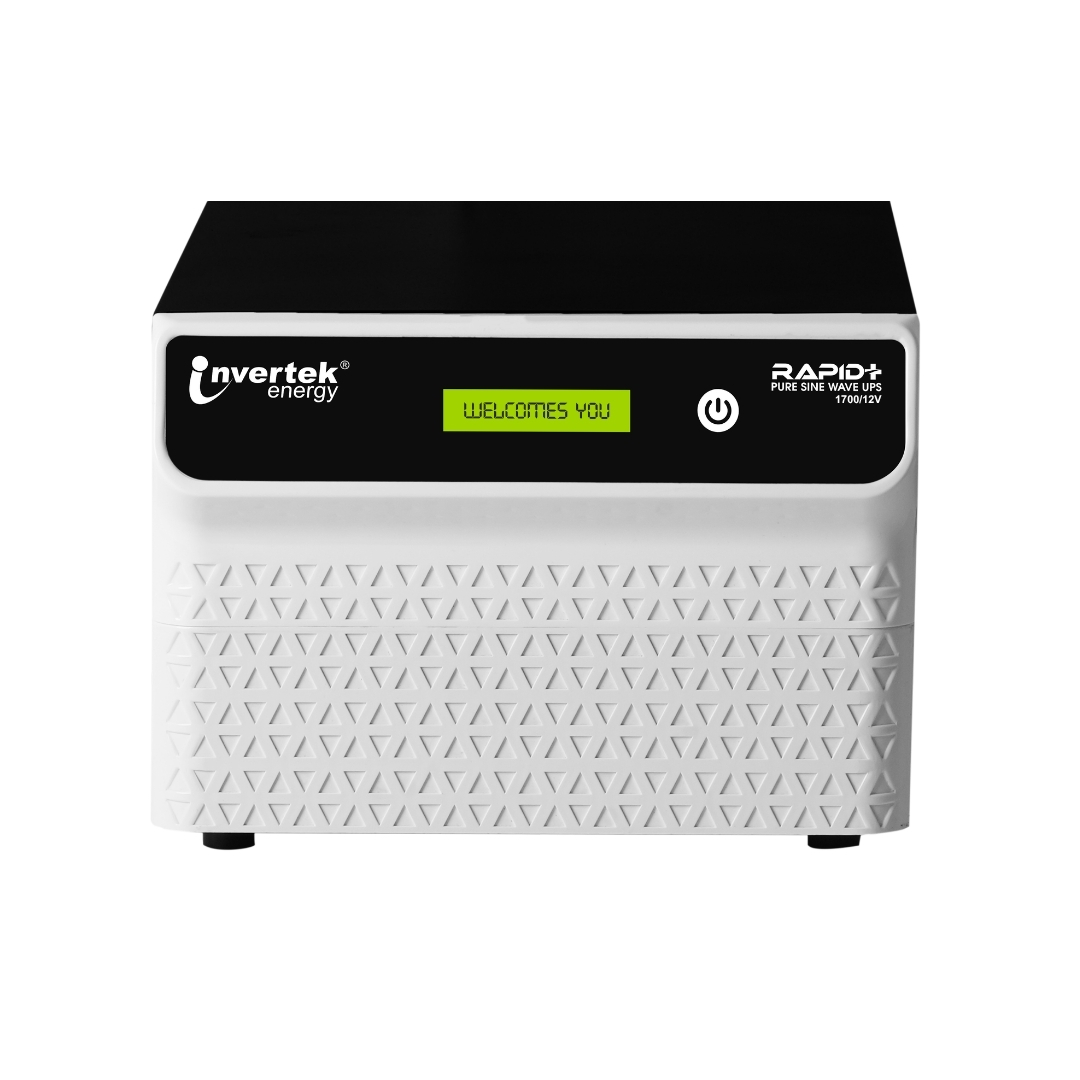

The Rapid+ 1700/12V is a 1400VA / 1120W pure sine wave inverter, and Invertek lists it as its bestseller for a standard 2BHK with fans, lights, a fridge and a TV. It runs on one 12V battery and has a 24×7 MCB.
Original price was: ₹10,990.00.₹7,579.00Current price is: ₹7,579.00.
The Rapid+ 1700/12V is a 1400VA / 1120W pure sine wave inverter, and Invertek lists it as its bestseller for a standard 2BHK with fans, lights, a fridge and a TV. It runs on a single 12V battery and has a 24x7 MCB.
The model number 1700 is not the VA rating. A different model, the Rapid+ 2000/24V (1700VA), is rated 1700VA on a 24V system. Invertek's sizing guide moves to the Rapid+ 2000 range once a 1.5-tonne AC is added.
The 1,120 W figure is a resistive (bulb load) rating. Motors such as fridge compressors and pumps draw a short surge when they start, so count them a little heavier. Typical draws are below; check the label on your own appliances.
| Appliance | Typical running draw |
|---|---|
| Ceiling fan | 60–80 W (BLDC fan: 30–35 W) |
| LED bulb or tube | 9–20 W |
| 32 to 43 inch LED TV | 40–100 W |
| Wi-Fi router and set-top box | 10–25 W |
| Laptop and phone chargers | 45–90 W |
| Desktop PC with monitor | 150–300 W |
| Single-door refrigerator | 100–200 W, plus a start-up surge |
| Double-door frost-free refrigerator | 150–300 W, plus a start-up surge |
| Top-load washing machine | 300–500 W |
A working example: five fans (350 W), eight LED lights (80 W), a 43-inch TV (100 W), a router (10 W), a single-door fridge (200 W) and a laptop (65 W) come to roughly 805 W, about 72% of the 1,120 W rating. As a rule of thumb, keep the continuous load below about 900 W, which is 80% of the rating.
Air conditioners, geysers, induction cooktops, room heaters and irons are outside this rating. For a washing machine or a water pump, read the label and add the start-up surge to your total.
The Rapid+ 1700/12V works with one 12V battery: tubular, TGEL, SMF, gel or LiFePO4 lithium. You can start with lead-acid and move to lithium later without replacing the inverter. The inverter is sold without a battery. A 12V 150Ah tubular battery is a common pairing at this size.
To estimate backup time, multiply battery volts by amp-hours, take about half of that as usable for a lead-acid battery, multiply by 0.85 for inverter losses, and divide by your load in watts. For a 12V 150Ah tubular battery (1,800 Wh) that works out to about 1 hour at 805 W and about 1.7 hours at 450 W. A 12.8V 100Ah LiFePO4 battery (assuming 90% usable) gives about 1.2 hours at 805 W. These are calculations with an assumed 85% inverter efficiency, not lab measurements; heavy loads, battery age and temperature all shorten real backup.
| Model | Rated capacity | Battery voltage | Display | Suits |
|---|---|---|---|---|
| Rapid+ 1500/12V (1125VA) | 1125VA / 900W | 12V | LCD | 2BHK with a single-door fridge |
| Rapid+ 1700/12V (this model) | 1400VA / 1120W | 12V | LCD | 2BHK with fridge and extra load |
| Rapid+ 2000/12V (1600VA) | 1600VA / 1280W | 12V | LCD | 3BHK or small shop on one 12V battery |
| Rapid+ 2000/24V (1700VA) | 1700VA / 1360W | 24V | LCD | 3BHK, shop or small office on 24V |
The inverter carries a 3-year (36-month) warranty. Register it on the warranty registration page after installation. Shipping is free on all orders, with standard delivery in 5–7 days. If you are unsure about sizing, call 9311369797 before you order. Invertek Energy makes its UPS range at its ISO 9001:2015 certified factory in New Delhi. Other capacities are listed in the full Rapid+ home UPS models.
| Model Series | Rapid+ 1700/12V |
|---|---|
| VA Rating | 1375VA |
| Product Dimensions | 277x390x205mm |
| Package Dimensions OD Size (mm) | 470x365x280 mm |
| Item Part Number | IE-SNW-INHUPS-1700-01A |
| Number of Items | 5 |
| Wattage | 1100W |
| Power Source | Inverter/ Home UPS |
| Frequencies | 50Hz |
| Manufacturer | Invertek Energy |
| Generic Name | Inverter/UPS |
| Included Components | 1 Inverter, Operating Manual, 2 DC Fuse ,Silica gel |
| Item Weight | 12 kg |
| Package Weight | 13.3 kg |
| Country of Origin | India |
| HSN Code | 8504 |
Q: Is 1700 the VA rating of the Rapid+ 1700/12V?
No. 1700 is the model number. The Rapid+ 1700/12V is rated 1400VA / 1,120 W on a 12V battery system. When you compare it with other inverters, compare the VA, watt and battery voltage figures rather than the model number.
Q: What can the Rapid+ 1700/12V run?
It suits a 2BHK home with a fridge and a few extra appliances. For example, five fans (350 W), eight LED lights (80 W), a 43-inch TV (100 W), a router (10 W), a single-door fridge (200 W) and a laptop (65 W) come to roughly 805 W, about 72% of the 1,120 W rating. Keep the continuous load under about 900 W.
Q: Can it run a fridge and a desktop PC together?
Yes, that is the load this model is sized for. A single-door fridge (100–200 W), a desktop PC (150–300 W), fans, lights and a TV stay well under the 900 W guideline. A top-load washing machine (300–500 W) can be added as long as the total stays under it.
Q: Which battery should I buy for the Rapid+ 1700/12V?
One 12V battery. Tubular, TGEL, SMF, gel and 12.8V LiFePO4 batteries all work. A 150Ah tubular battery is a common choice at this size, and a larger battery gives longer backup. The inverter is sold without a battery. If you are unsure, call 9311369797 before ordering.
Q: How long will the backup last?
Backup time is usable battery watt-hours divided by your load. With a 12V 150Ah tubular battery, using about half of the battery capacity and assuming 85% inverter efficiency, expect about 1 hour at 805 W and about 1.7 hours at 450 W. Switching off unused loads extends this. These are estimates, not measured results.
Q: Can I use a lithium battery with the Rapid+ 1700/12V?
Yes. It is lithium compatible, so you can fit a 12.8V LiFePO4 battery now or swap one in later. At full load the inverter draws roughly 95 to 110 A from the battery, so choose a battery whose BMS is rated for at least that current.
Q: How is it different from the Rapid+ 1500/12V and Rapid+ 2000/12V?
The Rapid+ 1500/12V is rated 1125VA / 900 W on 12V. This model is 1400VA / 1,120 W on 12V. The Rapid+ 2000/12V is 1600VA / 1,280 W on 12V and suits a 3BHK home or a small shop.
Q: What happens if I overload the Rapid+ 1700/12V?
The 24x7 MCB trips when the load goes past the 1,120 W rating or the output is shorted. Switch off the heaviest appliances and switch the MCB back on; nothing needs replacing. Keep the continuous load under about 900 W to avoid nuisance trips.
Q: What warranty does it have?
3 years (36 months). Register the unit on the warranty registration page after installation. For service, call 9311369797.
Bought the Rapid+ 1700/12V for our home in Jaipur because of frequent power cuts. It easily backs up fridge and fans and the sine wave output is very smooth, no humming sound from the fans or fridge. Installation by the local electrician was quick and simple. Overall very happy with the purchase, would recommend to anyone facing frequent power cuts. Haven't needed service yet but the warranty gives peace of mind.
Bought the Rapid+ 1700/12V for our home in Ludhiana because of erratic power supply in our area. It easily backs up fans, lights and the TV and the sine wave output is very smooth, no humming sound from the fans or fridge. Setup was straightforward, no issues at all. Overall really satisfied with the purchase, would recommend to anyone facing erratic power supply in our area. Haven't needed service yet but the warranty gives peace of mind.
Bought the Rapid+ 1700/12V for our home in Guwahati because of daily 3-4 hour power cuts. It easily backs up washing machine, fridge and fans and the sine wave output is very smooth, no humming sound from the fans or fridge. Setup was straightforward, no issues at all. Overall more than satisfied with the purchase, would recommend to anyone facing daily 3-4 hour power cuts. Support team responded quickly when I had a doubt about the battery.
Bought the Rapid+ 1700/12V for our home in Rajkot because of daily 3-4 hour power cuts. It easily backs up fans, lights and the TV and the sine wave output is very smooth, no humming sound from the fans or fridge. Our electrician said the wiring and build quality are solid. Overall more than satisfied with the purchase, would recommend to anyone facing daily 3-4 hour power cuts. Haven't needed service yet but the warranty gives peace of mind.
Bought the Rapid+ 1700/12V for our home in Ludhiana because of frequent power cuts. It easily backs up lights, fans and my son's online classes setup and the sine wave output is very smooth, no humming sound from the fans or fridge. Installed it myself in about half an hour, quite easy. Overall very happy with the purchase, would recommend to anyone facing frequent power cuts. The dealer explained the warranty terms clearly at the time of purchase.
