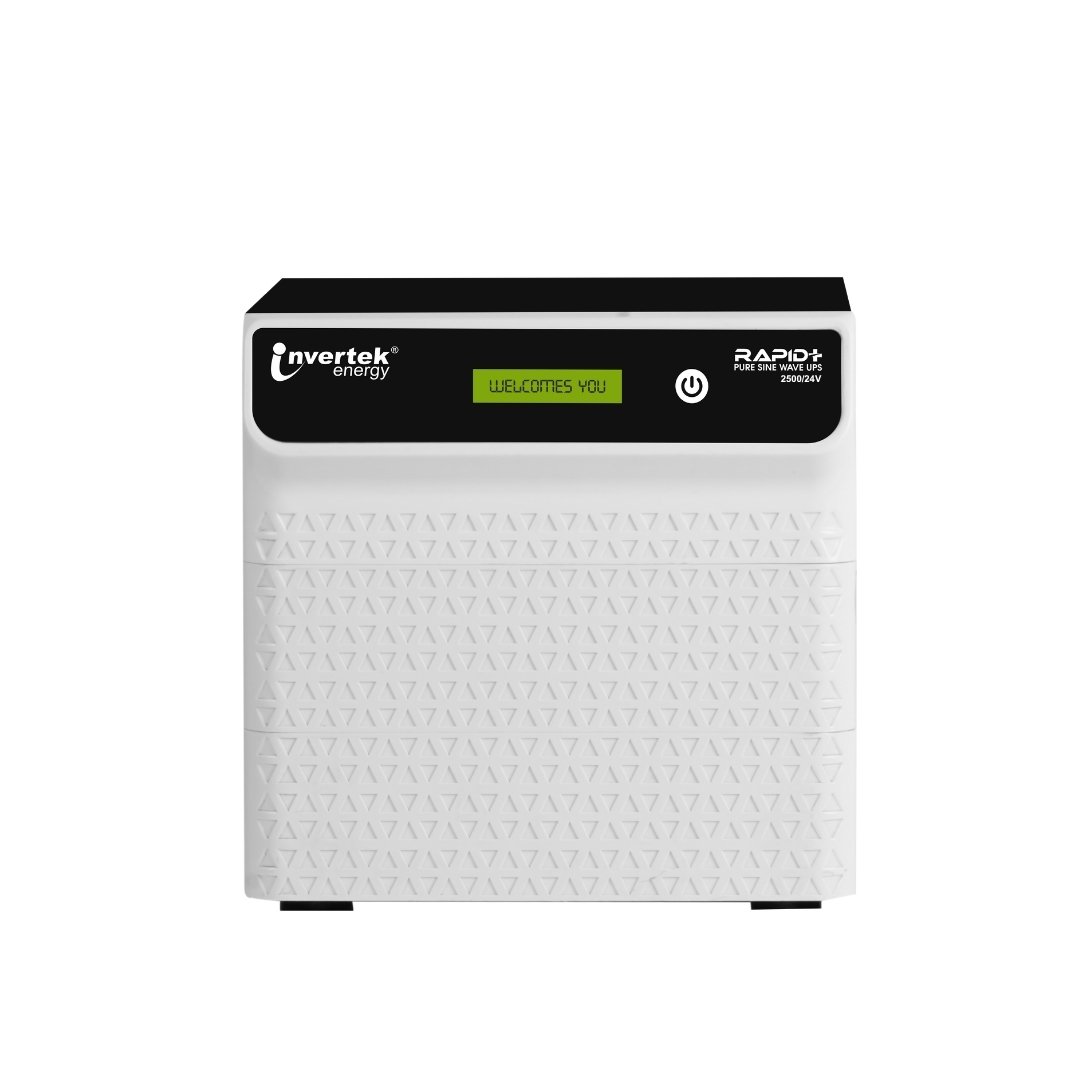

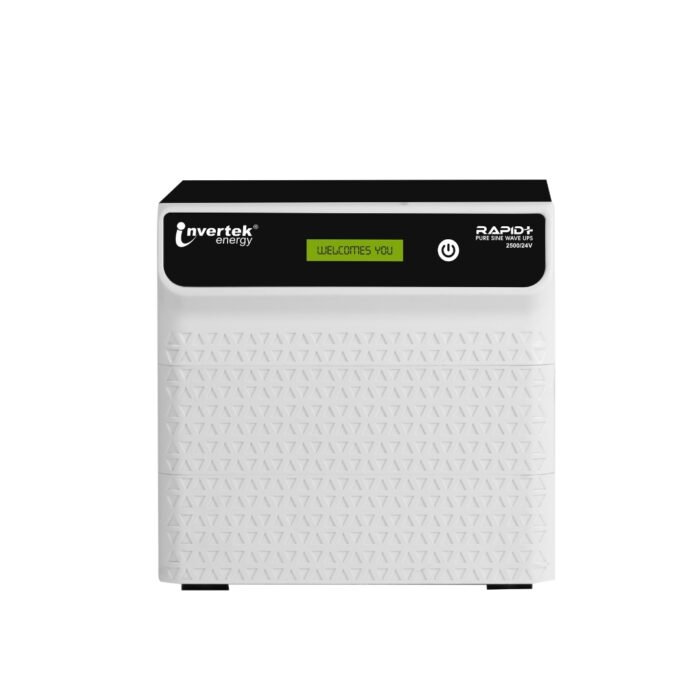

The Rapid+ 2500/24V is a 2250VA / 1800W pure sine wave inverter for large homes, shops and clinics. It runs on two 12V batteries in series and has a 24×7 MCB.
Original price was: ₹15,990.00.₹11,800.00Current price is: ₹11,800.00.
The Rapid+ 2500/24V is a 2250VA / 1800W pure sine wave inverter for large homes, shops and clinics. It runs on two 12V batteries in series and has a 24x7 MCB and automatic bypass.
"2500" is the model number; the rating is 2250VA. If you also want to run a 1-ton AC, move up to the Rapid+ 3500/24V (3150VA). For ordinary fan, light and fridge loads in a 3BHK, the Rapid+ 2000/24V (1700VA) is enough.
The 1,800 W figure is a resistive (bulb load) rating. Motors such as fridge compressors and pumps draw a short surge when they start, so count them a little heavier. Typical draws are below; check the label on your own appliances.
| Appliance | Typical running draw |
|---|---|
| Ceiling fan | 60–80 W (BLDC fan: 30–35 W) |
| LED bulb or tube | 9–20 W |
| 32 to 43 inch LED TV | 40–100 W |
| Desktop PC with monitor | 150–300 W |
| Double-door frost-free refrigerator | 150–300 W, plus a start-up surge |
| Top-load washing machine | 300–500 W |
| Water pump (0.5 HP) | 400–600 W, with a higher start-up surge |
| CCTV cameras with recorder | 30–80 W |
A working example: six fans (420 W), twelve LED lights (120 W), a TV (100 W), a router (10 W), a fridge (200 W) and two desktop PCs (500 W) come to roughly 1,350 W, about 75% of the 1,800 W rating. As a rule of thumb, keep the continuous load below about 1,440 W, which is 80% of the rating.
A 1-tonne inverter AC may fit inside the rating if the rest of the load is light; check its label first. Geysers, induction cooktops, room heaters and irons drain a battery bank quickly and are best left off during a power cut.

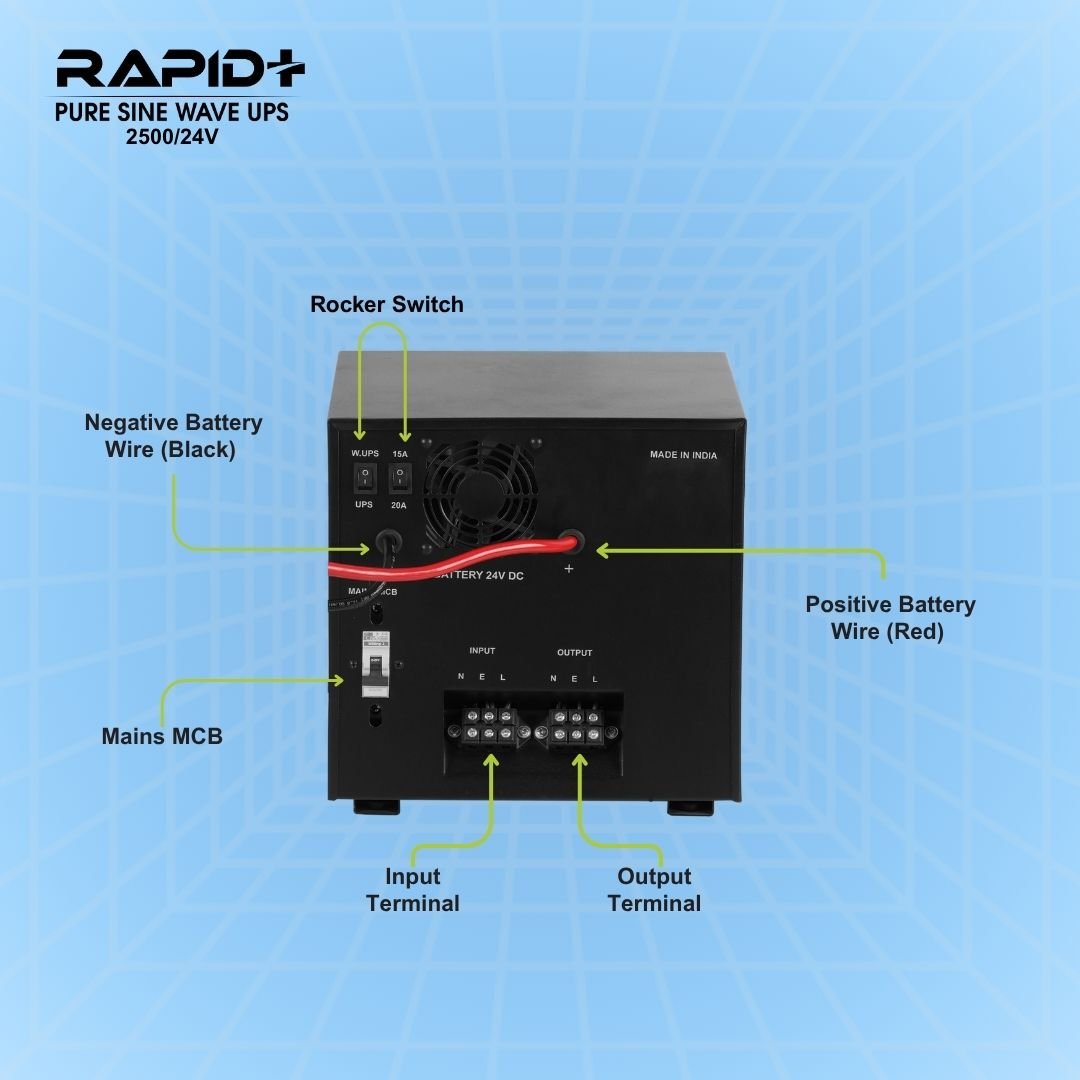

The Rapid+ 2500/24V is a 24V system, so it needs two 12V batteries connected in series. Tubular, TGEL, SMF, gel and LiFePO4 lithium all work. Connecting batteries in series raises the voltage, not the capacity: two 12V 150Ah batteries make a 24V 150Ah bank. The inverter is sold without batteries.
To estimate backup time, multiply battery volts by amp-hours, take about half of that as usable for a lead-acid battery, multiply by 0.85 for inverter losses, and divide by your load in watts. For two 12V 150Ah tubular batteries in series (3,600 Wh) that works out to about 1.1 hours at 1,350 W and about 2.0 hours at 750 W. A 25.6V 100Ah LiFePO4 battery (assuming 90% usable) gives about 1.5 hours at 1,350 W. These are calculations with an assumed 85% inverter efficiency, not lab measurements; heavy loads, battery age and temperature all shorten real backup.
| Model | Rated capacity | Battery voltage | Display | Suits |
|---|---|---|---|---|
| Rapid+ 2000/24V (1700VA) | 1700VA / 1360W | 24V | LCD | 3BHK, shop or small office on 24V |
| Rapid+ 2500/24V (this model) | 2250VA / 1800W | 24V | LCD | Large home, shop or clinic |
| Rapid+ 3000/24V (2650VA) | 2650VA / 2120W | 24V | LCD | Clinic and office grade |
| Rapid+ 3500/24V (3150VA) | 3150VA / 2520W | 24V | LCD | 3BHK and 4BHK with a 1-ton AC |
The inverter carries a 3-year (36-month) warranty. Register it on the warranty registration page after installation. Shipping is free on all orders, with standard delivery in 5–7 days. If you are unsure about sizing, call 9311369797 before you order. Invertek Energy makes its UPS range at its ISO 9001:2015 certified factory in New Delhi. Other capacities are listed in the full Rapid+ home UPS models.
| Model Series | Rapid+ 2500/24V** |
|---|---|
| VA Rating | 2250VA/24V |
| Product Dimensions | 277x300x283 mm |
| Package Dimensions OD Size (mm) | 382x366x350 mm |
| Item Part Number | IE-SNW-INHUPS-2500-03A |
| Number of Items | 4 |
| Wattage | 1800W |
| Power Source | Inverter/ Home UPS |
| Frequencies | 50Hz |
| Manufacturer | Invertek Energy |
| Generic Name | Inverter/UPS |
| Included Components | 1 Inverter, Operating Manual, 1 Battery jointer, Silica gel |
| Item Weight | 15.8 kg |
| Package Weight | 17.13 kg |
| Country of Origin | India |
| HSN Code | 8504 |
Q: Is 2500 the VA rating of the Rapid+ 2500/24V?
No. 2500 is the model number. The Rapid+ 2500/24V is rated 2250VA / 1,800 W on a 24V battery system. When you compare it with other inverters, compare the VA, watt and battery voltage figures rather than the model number.
Q: What can the Rapid+ 2500/24V run?
It suits a large home, a shop or a clinic. For example, six fans (420 W), twelve LED lights (120 W), a TV (100 W), a router (10 W), a fridge (200 W) and two desktop PCs (500 W) come to roughly 1,350 W, about 75% of the 1,800 W rating. Keep the continuous load under about 1,440 W.
Q: Is it suitable for a clinic or a shop?
Yes, for lights, fans, computers and a fridge. A 1-ton inverter AC (700–1,000 W once running) may fit inside the 1,800 W rating if the rest of the load is light; check its label first. Keep the continuous load under about 1,440 W.
Q: How many batteries does the Rapid+ 2500/24V need?
Two 12V batteries connected in series to make a 24V bank. Tubular, TGEL, SMF, gel or LiFePO4 all work. Series connection doubles the voltage, not the capacity: two 12V 150Ah batteries give a 24V 150Ah bank. The inverter is sold without batteries.
Q: How long will the backup last?
Backup time is usable battery watt-hours divided by your load. With two 12V 150Ah tubular batteries in series, using about half of the battery capacity and assuming 85% inverter efficiency, expect about 1.1 hours at 1,350 W and about 2.0 hours at 750 W. Switching off unused loads extends this. These are estimates, not measured results.
Q: Can I use a lithium battery with the Rapid+ 2500/24V?
Yes. It is lithium compatible, so you can fit a 25.6V LiFePO4 pack (or two 12.8V batteries in series) now or swap one in later. At full load the inverter draws roughly 75 to 90 A from the battery, so choose a battery whose BMS is rated for at least that current.
Q: How is it different from the Rapid+ 2000/24V and Rapid+ 3000/24V?
The Rapid+ 2000/24V is rated 1700VA / 1,360 W on 24V. This model is 2250VA / 1,800 W on 24V. The Rapid+ 3000/24V is 2650VA / 2,120 W on 24V and suits a clinic, an office or a large home.
Q: What happens if I overload the Rapid+ 2500/24V?
The 24x7 MCB trips when the load goes past the 1,800 W rating or the output is shorted. Switch off the heaviest appliances and switch the MCB back on; nothing needs replacing. Keep the continuous load under about 1,440 W to avoid nuisance trips.
Q: What warranty does it have?
3 years (36 months). Register the unit on the warranty registration page after installation. For service, call 9311369797.
Bought the Rapid+ 2500/24V for our home in Bhopal because of daily 3-4 hour power cuts. It easily backs up lights, fans and my son's online classes setup and the sine wave output is very smooth, no humming sound from the fans or fridge. Our electrician said the wiring and build quality are solid. Overall very happy with the purchase, would recommend to anyone facing daily 3-4 hour power cuts. Support team responded quickly when I had a doubt about the battery.
Bought the Rapid+ 2500/24V for our home in Rajkot because of unscheduled outages during monsoon. It easily backs up fridge and fans and the sine wave output is very smooth, no humming sound from the fans or fridge. Setup was straightforward, no issues at all. Overall genuinely pleased with the purchase, would recommend to anyone facing unscheduled outages during monsoon. Customer support was helpful when I called with a query.
Bought the Rapid+ 2500/24V for our home in Meerut because of long power cuts during storms. It easily backs up fridge and fans and the sine wave output is very smooth, no humming sound from the fans or fridge. Setup was straightforward, no issues at all. Overall quite impressed with the purchase, would recommend to anyone facing long power cuts during storms. The dealer explained the warranty terms clearly at the time of purchase.
Bought the Rapid+ 2500/24V for our home in Indore because of unscheduled outages during monsoon. It easily backs up WiFi router, TV and fans and the sine wave output is very smooth, no humming sound from the fans or fridge. Setup was straightforward, no issues at all. Delivery took a couple of days longer than expected but the product itself is fine.
Bought the Rapid+ 2500/24V for our home in Kanpur because of unscheduled outages during monsoon. It easily backs up washing machine, fridge and fans and the sine wave output is very smooth, no humming sound from the fans or fridge. Installed it myself in about half an hour, quite easy. Support team responded quickly when I had a doubt about the battery.
