Wall Mounted UPS Inbuilt Lithium-ion Battery
Looking for a smarter way to keep the lights on during power outages? Meet Invertek Energy’s Wall Mounted UPS—with its built-in lithium-ion battery, it’s designed to fit seamlessly into your life. Combining reliability, convenience, and sustainability in one sleek package, this UPS ensures your day runs smoothly, no matter what.
Engineered with advanced lithium-ion technology and a smart inverter system, it delivers efficient power backup while keeping your energy use in check. Whether it’s for your home, office, or even outdoor adventures, this versatile and easy-to-install UPS is built to match your needs with ease.
Its wall-mounted design doesn’t just save space—it enhances your interiors with a modern, stylish look. Plus, with a focus on long-lasting performance, safety, and eco-friendliness, this is power management built for the future. Whatever your energy needs, Invertek Energy’s Wall-Mounted UPS is ready to deliver.
Built in BMS Automatic Low & High Battery Cut-out

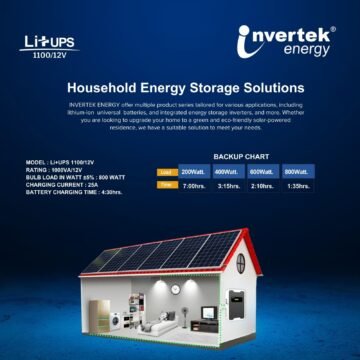

Back-up Time 3_15 Min. @400W LFP-PC 100Ah 1280 Watt Hour
Maintenance Free No Acid Spills or Fumes
MCB Protection 24x7 Over-load & Short Circuit
Li+ UPS 1100/12V
UPS Features
- DSP Pure Sine Wave Technology Using Heavy Duty Mosfet
- LCD Display (16 X 2)
- Built In Galvanic Isolation Transformer
- Automatic Bypass
- Charging Current 25 Amp
- Generator Compatible
Battery Features
- Rated Voltage (V) - 12.8
- Rated Capacity (AH) - 100Ah
- No. Of Celles In Series & Parallel Connection - 4S1P
- Rated Energy (Wh) - 1280
- Charge Aand Discharge Cut-off Voltage (V) - 11.8~13.8V
- Charging Mode - CC-CV
- Standard Discharging Current (A) - 65
- Allowed Depth of Discharge - 80%
Model: Li+ UPS 1100/12V
Rating: 1000VA/12V
Bulb Load In Watt ±5%: 800Watt
Battery Charging Time: 4:30hrs
Charging Current: 25A
Li+ UPS 2500/24V
UPS Features
- DSP Pure Sine Wave Technology Using Heavy Duty Mosfet
- LCD Display (16 X 2)
- Built In Galvanic Isolation Transformer
- Automatic Bypass
- Charging Current 25 Amp
- Protection 24x7 : Over-load, Short Circuit, Over-temperature, Deep-discharge, Over-charge & Over-current Protection
Battery Features
- Rated Voltage (V) - 25.6
- Rated Capacity (AH) - 100Ah
- No. Of Celles In Series & Parallel Connection - 8S1P
- Rated Energy (Wh) - 2.56 kWh
- Charge Aand Discharge Cut-off Voltage (V) - 23.6~27.6V
- Charging Mode - CC-CV
- Standard Discharging Current (A) - 65
- Allowed Depth of Discharge - 80%
Model: Li+ UPS 2500/24V
Rating: 2200VA/24V
Bulb Load In Watt ±1%: 1800Watt
Charging Current: 25A
Li+ UPS 5000/48V
UPS Features
- DSP Pure Sine Wave Technology Using Heavy Duty Mosfet
- LCD Display (16 X 2)
- Built In Galvanic Isolation Transformer
- Automatic Bypass
- Charging Current 25 Amp
- Protection 24x7 : Over-load, Short Circuit, Over-temperature, Deep-discharge, Over-charge & Over-current Protection
Battery Features
- Rated Voltage (V) - 51.2V
- Rated Capacity (AH) - 100Ah
- No. Of Celles In Series & Parallel Connection - 15S1P
- Rated Energy (Wh) - 4.8 kWh
- Charge Aand Discharge Cut-off Voltage (V) - 44.25-51.75V
- Charging Mode - CC-CV
- Standard Discharging Current (A) - 65
- Allowed Depth of Discharge - 80%
Model: Li+ UPS 5000/48V
Rating: 5KVA/48V
Bulb Load In Watt ±1%: 4000Watt
Charging Current: 25A
